CNCTOPBAOS 2.2KW Water Cooled Spindle Motor ER20 24000rpm 400Hz+2.2KW VFD Inverter Variable Frequency Driver 110V+80mm Clamp+80W Pump+6m Pipe+14pcs Collet CNC Kit for CNC Router Milling Machine
4.9 (92 items)
Limited Time SaleUS$177.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210271107 | Release Date | 2026/04/02 | List Price | US$118.00 | Model Number | 210271107 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

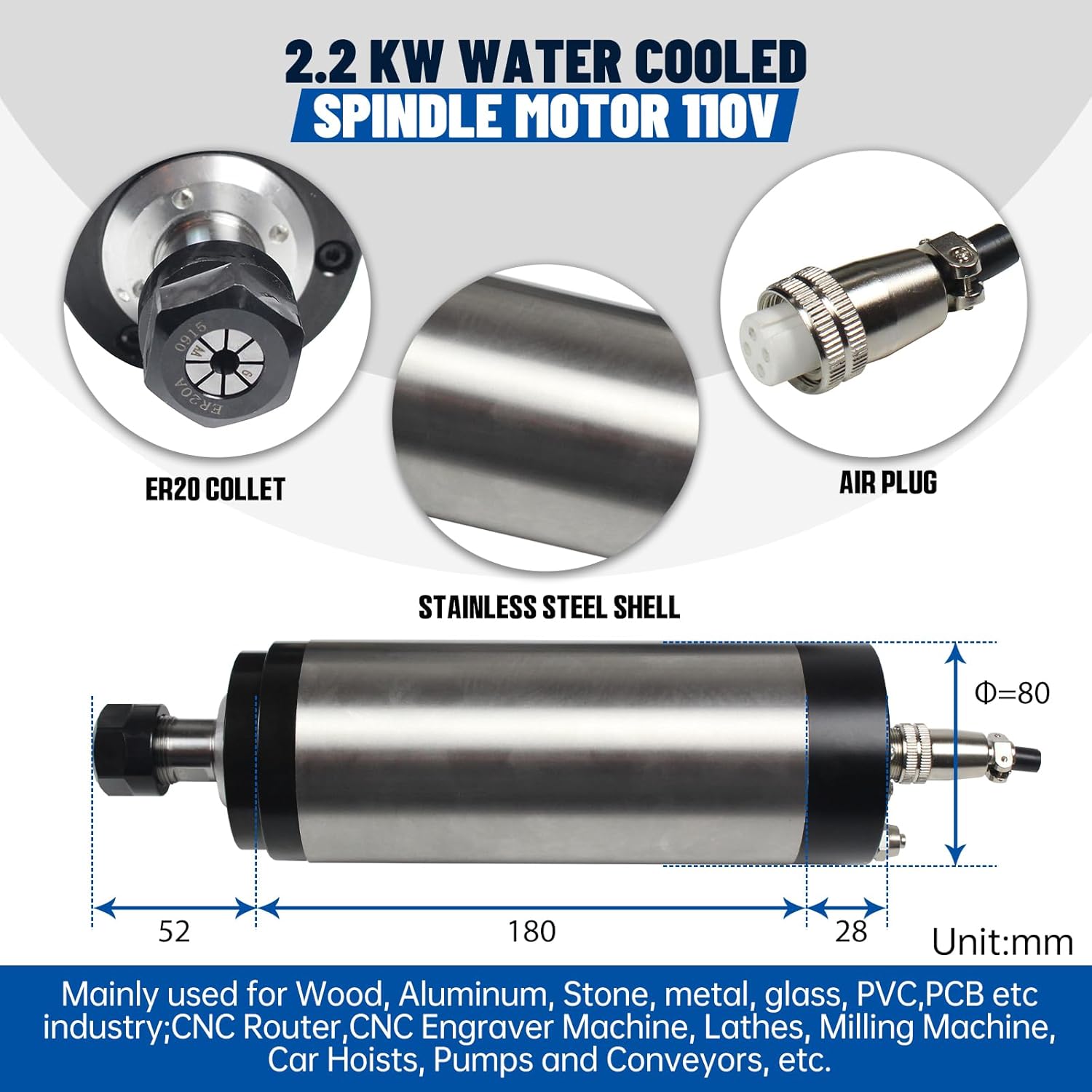

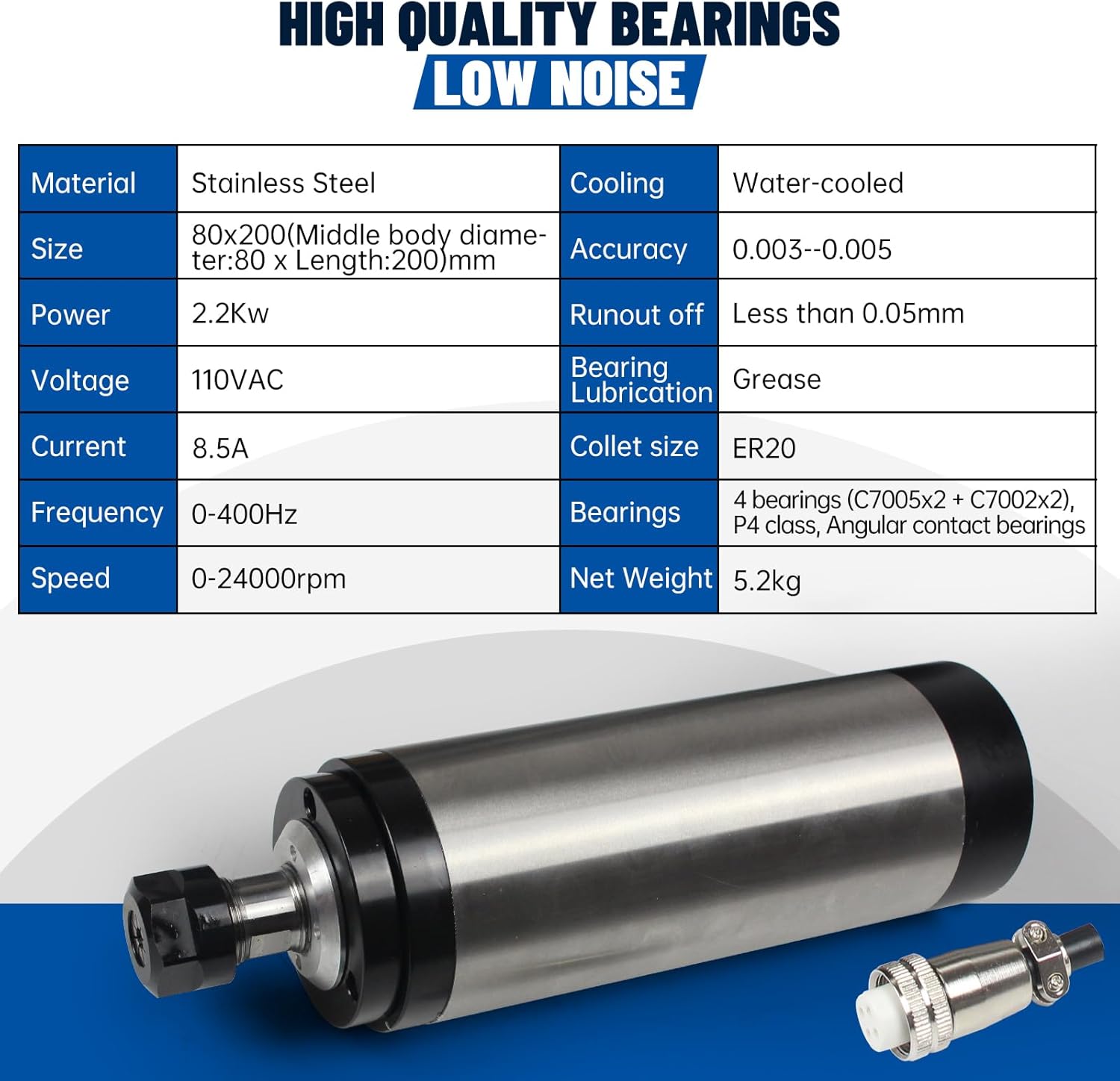

- Specifications of Spindle: Power: 2.2KW; Water-cooling; Speed:0-24000rpm; Frequency:400Hz; Voltage:110V; Accuracy:0.003-0.005; Collet: ER20; Bearings: Four; Net Weight: 5.2 kg/11.46 LB; Lubrication:Grease; Current:8.5A; Size:80x200 mm
- Specifications of VFD: Power: 2.2KW; Input Voltage: 110V+/-15% ; Output Voltage 100V-120V AC; Input Frequency: 48-63Hz; Output Frequency: 0-400Hz; Input Phase: Single phase; Output Phase:Three phase; Output Current: 20A

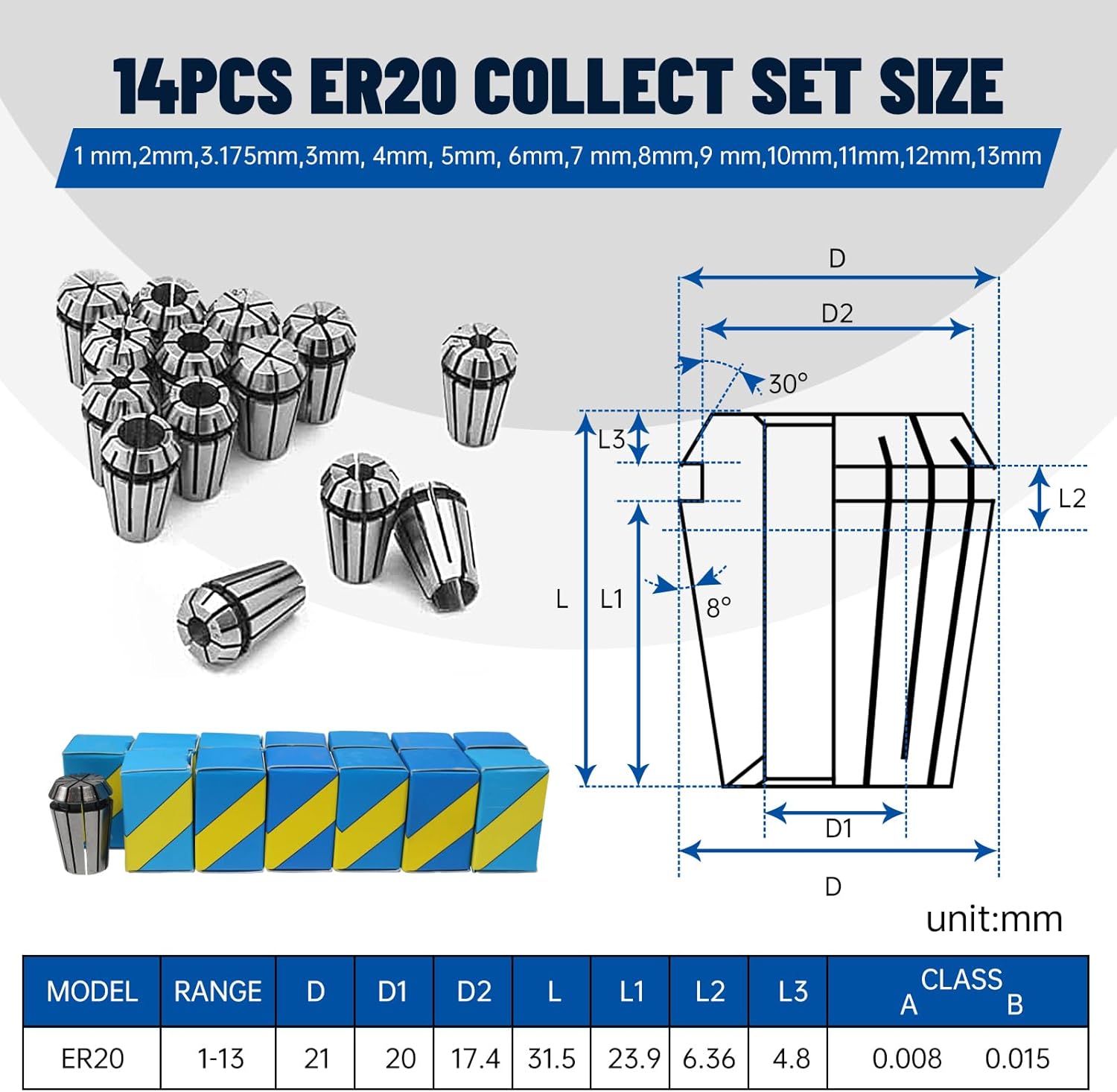

- Clamp: Dia is 80mm; Material: Cast Aluminum; With three installation screws; 14Pcs ER20 collet: Full set including 1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm each 1pcs;Run-out tolerance 0.1mm;First class 1065 carbon steel
- Pump: 80W strong power; Pump Length: 3.5m; Voltage:105-125VAC with US plug; Flow:3500L/H; Size:153x88x108mm; Water nozzle diameter:8mm; Rubber suction cups can be a good fit in the glass surface, to help keep it stability; Pipe Length: 6M

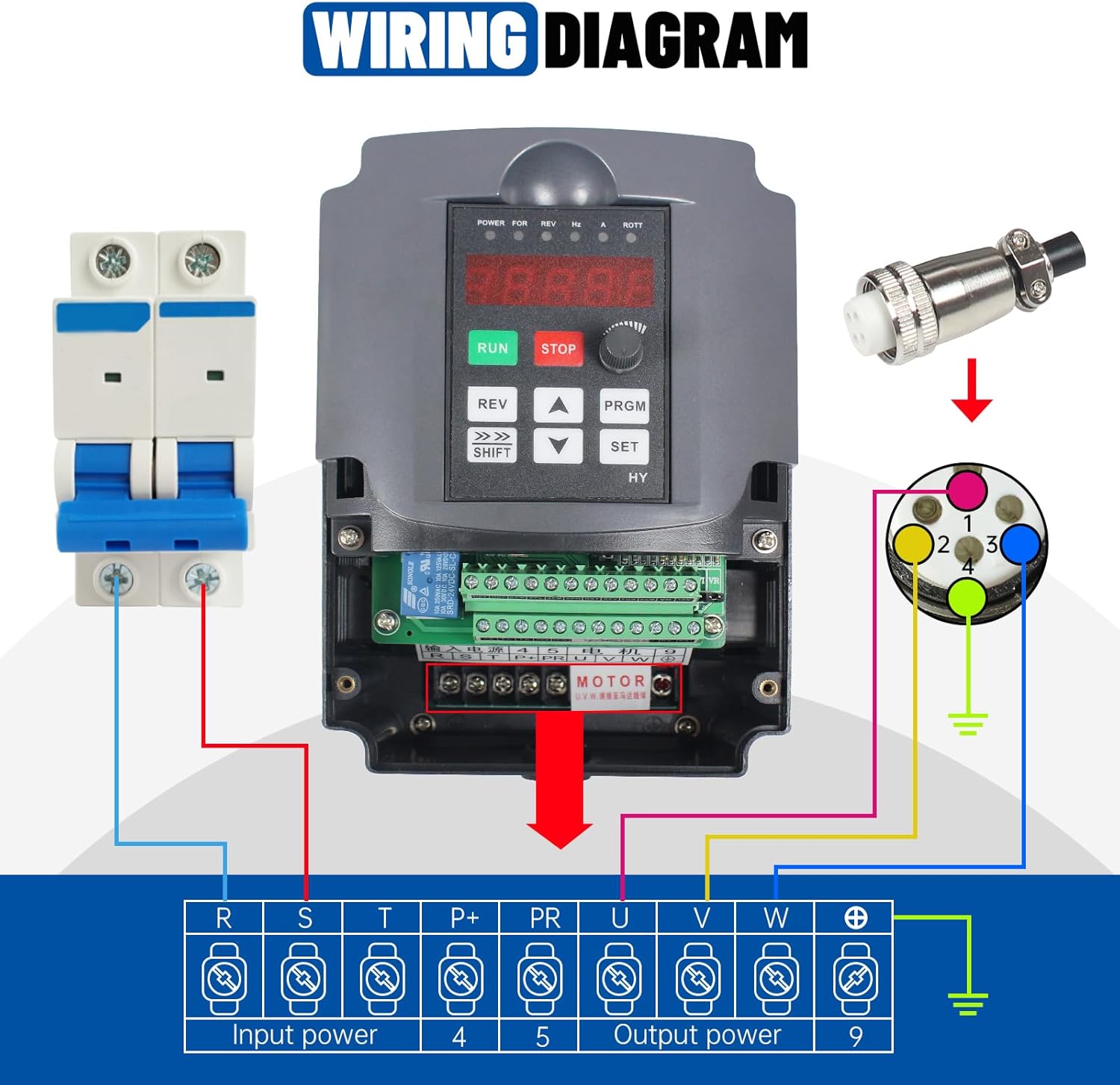

- Wiring: Spindle's pin 1=U; Spindle's pin 2=V; Spindle's pin 3=W; Spindle's pin 4=Ground; Pls connect the 110V AC power supply input wires to the R & T terminals; All parameters of VFD are pre-set before leaving the factory and can run the spindle
| Voltage | 110 Volts |
|---|---|
| Wattage | 2.2 KW |
| Material | Aluminum |
| Horsepower | 3 Horsepower |
| Hose Length | 6 Meters |
| Item Weight | 22.4 pounds |
| Part Number | 22cn |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Power Source | AC |
| Maximum Power | 2.2 Kilowatts |
| Item model number | 22cn |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 16 x 16 x 8 inches |
| Item Package Quantity | 1 |
| Is Discontinued By Manufacturer | No |
