CNLINKO DL-28 50A Waterproof Connector 3-Pin Screw-Assembly High-Current Compact Size IP68 Push-Pull Locking Electrical Plug for Display Industrial Automation (Inline Set)
4.4 (102 items)
Limited Time SaleUS$15.81 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210288532 | Release Date | 2026/04/02 | List Price | US$10.54 | Model Number | 210288532 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DL28 3-Pin Screw Connector: This male plug and female mating plug provide a quick-connect solution with an intuitive design for easy and secure plug/unplug. The screw-termination design ensures a stable connection without the need for soldering, making it suitable for users of all experience levels. Plug-and-play integration allows for convenient setup. Note: The terminal screws are pre-embedded in both plug and socket. Simply loosen them slightly to make the connection.

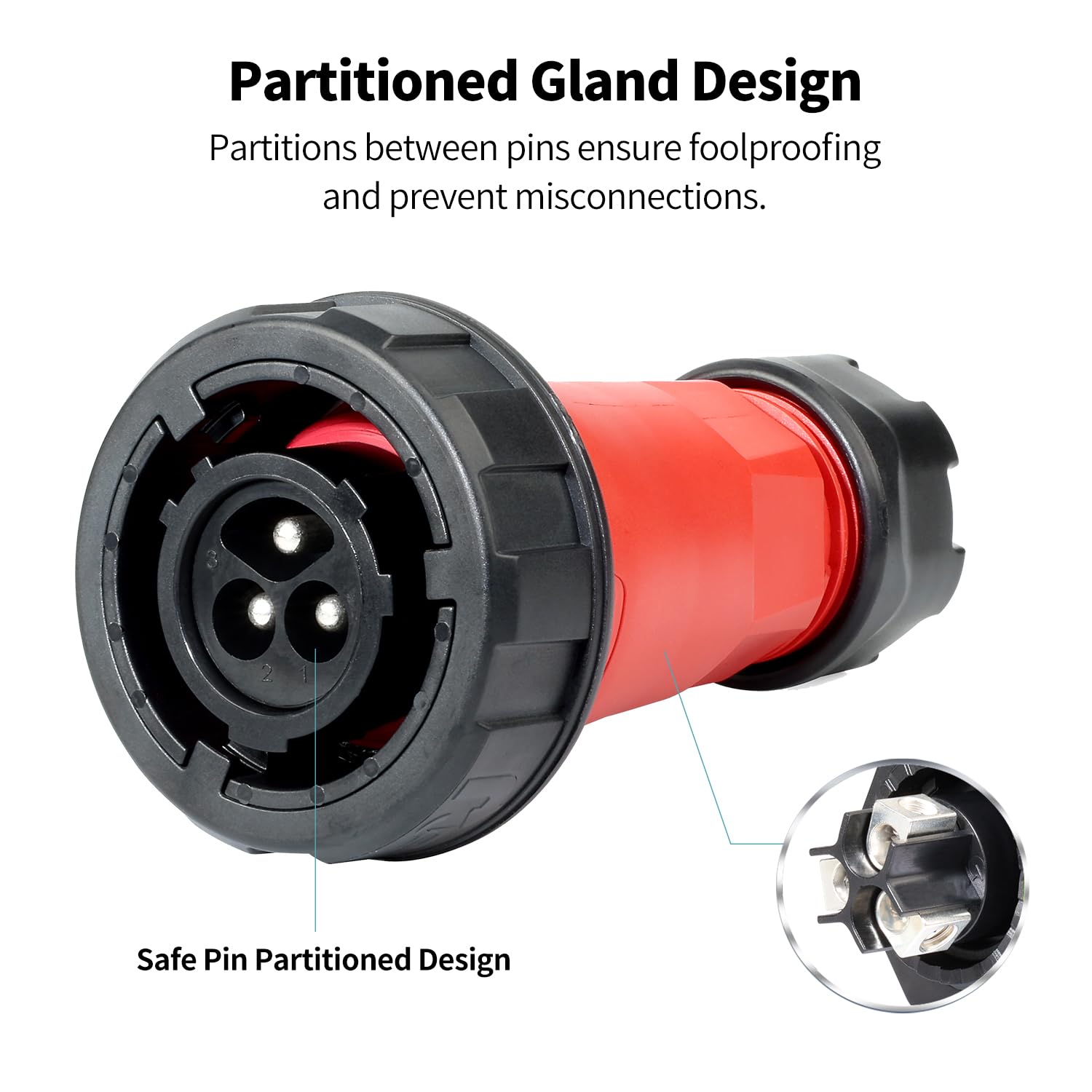

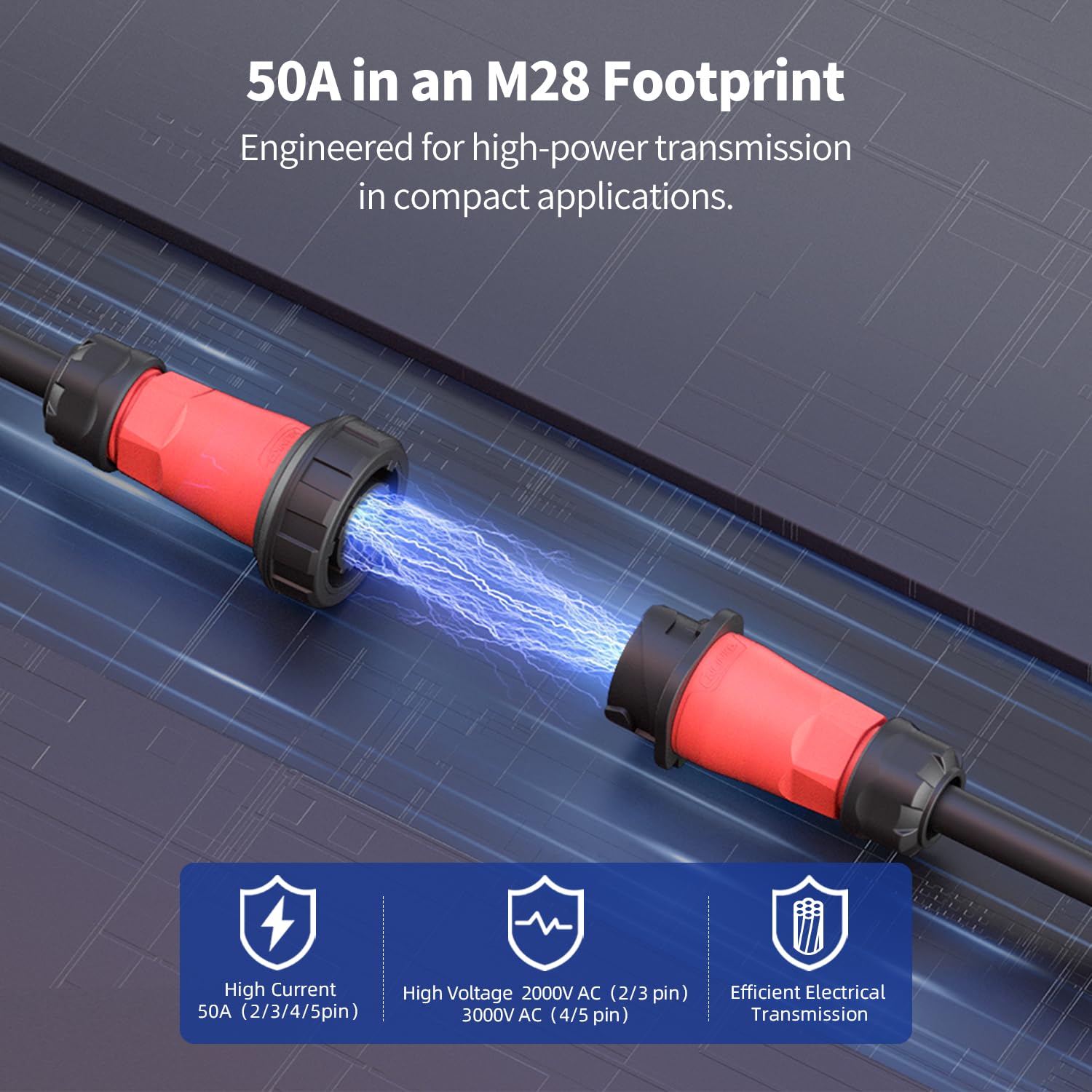

- High-Capacity Current in Ultra-Compact Size: Supports up to 50A current within a sleek, minimized footprint. This space-efficient design addresses wiring challenges in tightly packed layouts, offering robust power performance ideal for high-density modern equipment. Features a partitioned barrier that separates each terminal. This layout enhances electrical insulation, helps prevent short circuits, and reduces the risk of signal interference or unintended contact.

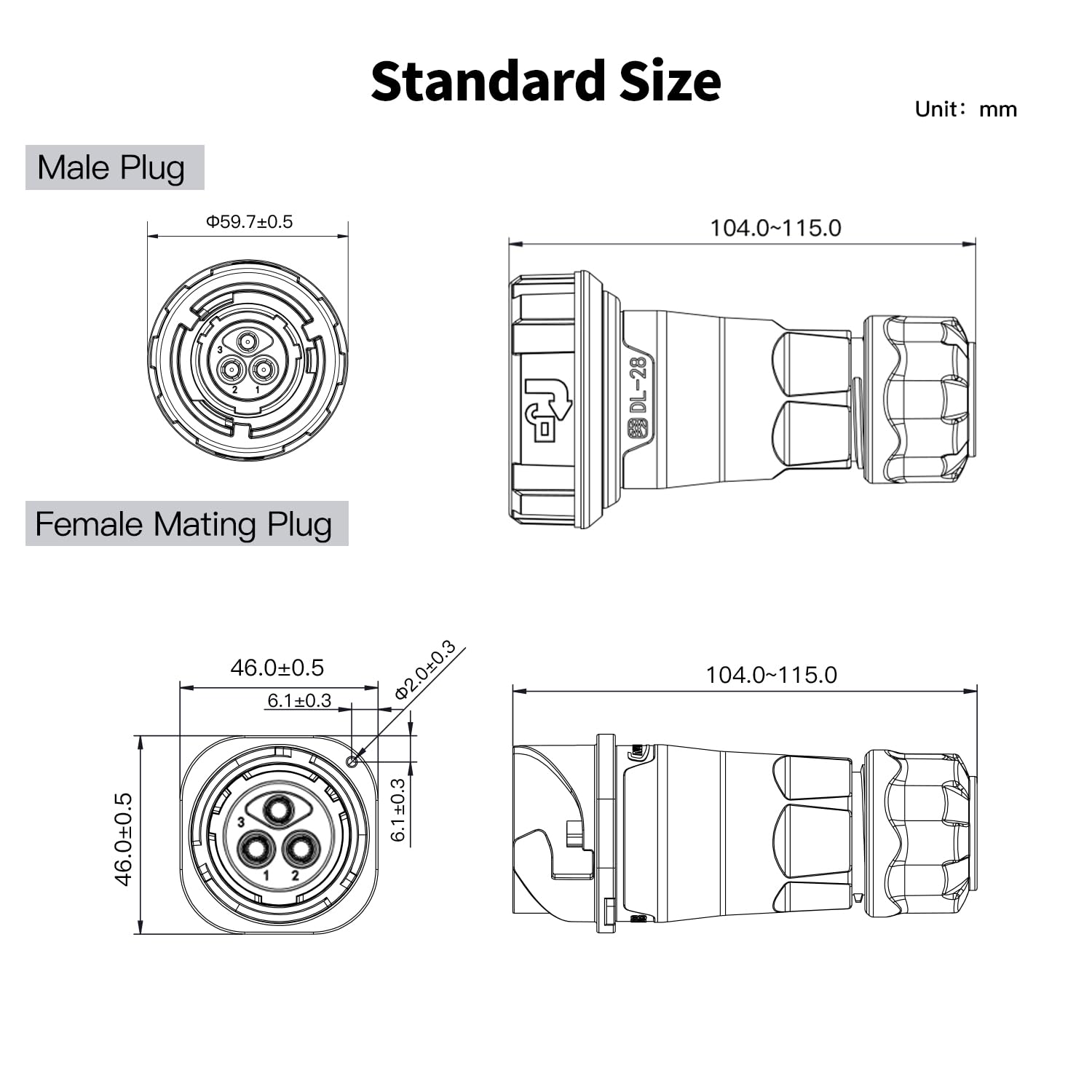

- Standard Specifications: Capable of supporting 10.0-16.0mm²/8-6AWG cable with a diameter of Φ17.5mm-Φ20.5mm. It handles 50A current, AC 500V voltage, and withstands AC 2000V. Contact resistance is ≤1.0mΩ, insulation resistance is >500MΩ.The connector is designed for over 500 cycles at temperatures ranging from -25°C to 85°C. Contact Diameter × Number: Φ4.0x3. Note: Avoid charging during insertion.
- Robust Materials: Made with high-strength engineering plastic for the shell, zinc alloy (pearl chrome-plated) for metal parts, and silver-plated copper alloy contacts. Silica gel sealing ensures protection against moisture, dust. Industrial-grade construction offers electrical performance, high temperature resistance, and long-lasting durability.
- Versatile Industrial Applications: With an IP68 protection rating when mated, it effectively resists dust, moisture, and harsh environments. Ideal for a wide range of power and signal transmission needs for professional LED displays, lighting installations, automation, robotics, power supplies, machinery, automotive equipment, marine electronics, outdoor power equipment, industrial sensors, control cabinets, and agricultural machinery.
