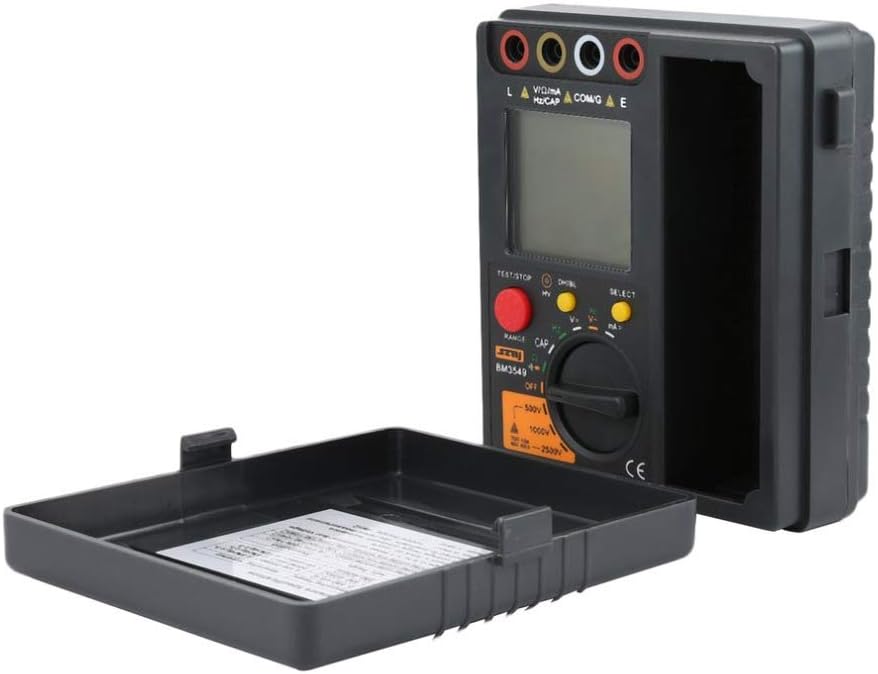

Digital Resistance Meter 2 in 1 Insulation Resistance Test LCD Backlight Multimeter Megohmmeter Voltmeter Ohm Tester

SpecificationsModel:BM3549MAX Display:3999Insulation Resistance: 0.5M~40GAccuracy:200k~200M3%5d,200M~4G5%5d,4G~40G10%5dMeasuemeat Voltage:500V/1000V/2500Vshort circuit current:1.5mAMeasuemeat time:1/2/10min (min)Multimeter functions:DCV: 400mV/4V/40V/400V0.5%5d,1000V0.8%5dACV: 4V/40V/400V0.8%5 ,700V1%5dDCA:40mA/400mA0.8%5dACA:40mA/400mA1%5dResistance:400/4k/40k/400k0.8%5d, 4M1%3d,40M3%3dCapacitance:40nF/400nF/4uF/40 uF3%5d Frequency:40Hz/400Hz/4 kHz /40 kHz/400 kHz /4MHz 0.5%3dAuto Range:YLCD Backlight:YPower:1.5V AA Batteries(LR6)X 6(not included)Item size:170x156x64mm

• Features:1.2 in 1 meter:Resistance test meter and Digital multimeter.2.Founctions:AC/DC voltage current,resistance and capacitance,AC voltage range frequency measurement function,diode,continuity buzzer.3.With LCD Backlight,can read data in dark.4.The output voltage and insulation resistance are displayed simultaneously.5.Used for insulation resistance measurement of various electrical equipment and insulation materials. Descriptions:1.The BM3549 is a 2 in 1 digital
• nsulation resistance test meter,has panel calibrate,auto range,over load protection founctions.2.More founctions:AC/DC voltage current,resistance and capacitance,frequency measurement function,diode,continuity buzzer.3.It is used for smelting, telecommunications, manufacturing, oil,defense, power, chemical industry,such as circuit of measurement and maintenance.
